209-I ESD Wrist Strap Online Monitor

Name: 209-I ESD Wrist Strap Online Monitor
Brand: Suzhou Jujie Electron Co.,Ltd.

Introduction

209-1 ESD Wrist Strap Monitor is a single-station online continuous monitoring instrument for ESD wrist straps. It monitors the grounding loop of one operator’s wrist strap in real time. When the wrist strap is disconnected, poor skin contact or ground failure occurs, the unit triggers audible and visual alarm within 0.1 second. It guarantees valid static dissipation in EPA workstations, prevents ESD damage to sensitive electronic components.

PREV：209-II ESD Wrist Strap Online Monitor NEXT：J-K203 ESD Keyboard and Mouse with wire

01Specification 02Application 03Inquiry

About Us

Suzhou Jujie Electron Co., Ltd was founded in 2005 and is a high-tech enterprise specializing in the research and development, production, sales and service of cleanroom and ESD products. In 2018, suzhou Jujie Electron Co., Ltd fully invested in Jujie Ultra Clean Technology Shuyang Co., Ltd. to expand cleanroom and ESD products production line. The plant area is 33000m², including 8000m² lint free workshop and cleanrooms are built according to ISO Class 5, Class 6 standards and pass the NEBB certification. We increase new 48 automatic weaving, washing, shaping production lines, equipped with laser cutting machine imported from Japan, ultrasonic cutting machine and other automatic production equipment imported from Germany, United States, South Korea infrared spectrometer, liquid particle counter and other high-end detection equipment, production capacity increased by 10 times.

Honor

High tech Enterprise Certificate
NEEB 5
Trademark Certificate
Specialized and Innovative Certificate
Trademark Certificate
ISO 45001
ISO 14001
ISO 9001
3A Certificate
3A Certificate
3A Certificate
3A Certificate

News

Class 10000 Cleanroom: ISO 7 Requirements, Consumables, and ...

Industry news 2026-09-25

If your team is upgrading an SMT line, a medical packaging area, or an optical assembly cell to a Class 10000 cleanroom, the first purchase order often goes to the HVAC contractor. That is understand...
View More
Class 1000 Cleanroom Explained: ISO 6 Standards, Particle Li...

Industry news 2026-09-18

A Class 1000 cleanroom permits no more than 1,000 particles of 0.5 microns or larger per cubic foot of air, which makes it equivalent to an ISO Class 6 cleanroom under ISO 14644-1. It is a widely spe...
View More
Understanding Battery Dry Rooms: Dew Points, Design, and Cle...

Industry news 2026-09-11

A battery dry room is a sealed, positive-pressure enclosure that holds the air at −40°C to −60°C dew point, a moisture content of only a few parts per million. That dryness is not a comfort feature; ...
View More

Industry Knowledge Extension

Application

Widely used in electronics cleanrooms, SMT and PCB workshops, semiconductor factories, optical and display workshops, new energy workshops, electronic assembly and repair workstations and other ESD-controlled areas.

Features

• Single Station Real-time Monitoring For one operator, continuously detects wrist strap circuit continuity and ground connection status.

• Audible & Visual Alarm Prompt Green LED for normal status; red LED plus buzzer alarm activates instantly once circuit abnormality is detected.

• Adjustable Alarm Threshold Default resistance range:1.068MΩ ~2.0MΩ (±5%). Threshold can be customized according to factory ESD control requirements.

• Strong Anti-interference Performance Built-in anti-EMI circuit, effectively reduces false alarms caused by electromagnetic noise from surrounding production equipment.

• Microchip Control & Plug-and-Play Microprocessor design, no complex calibration required after installation. Ready to operate after connecting power and ground wire.

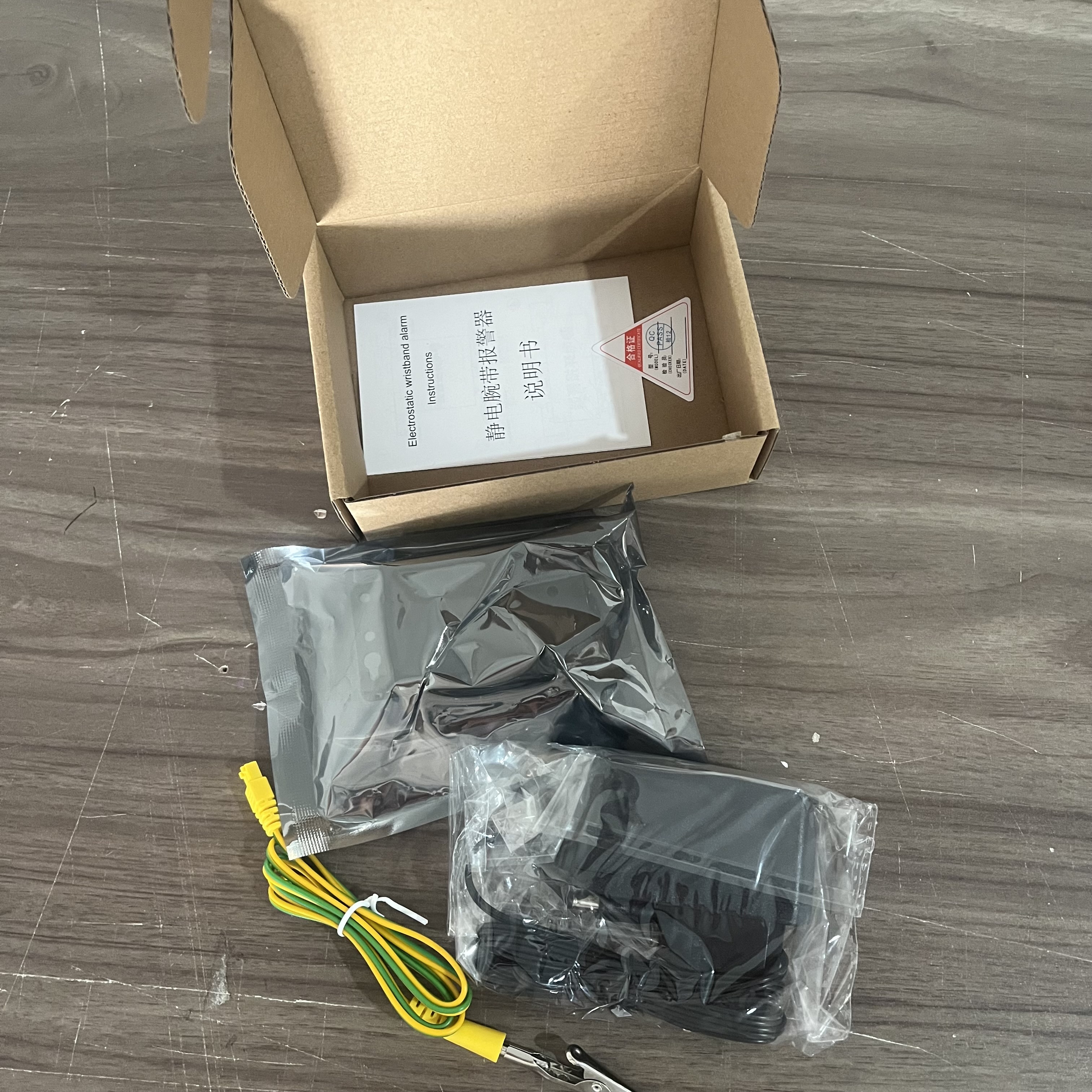

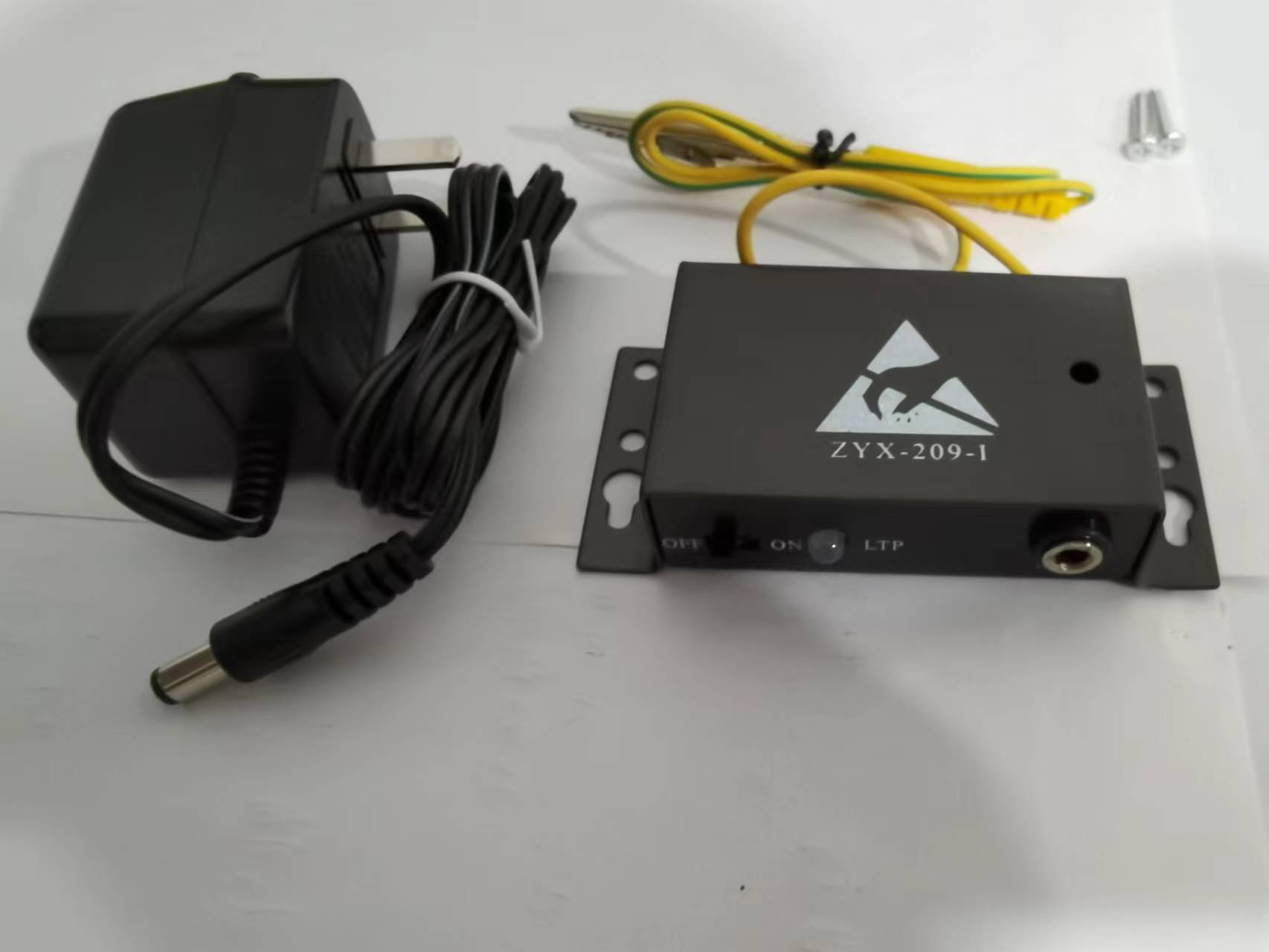

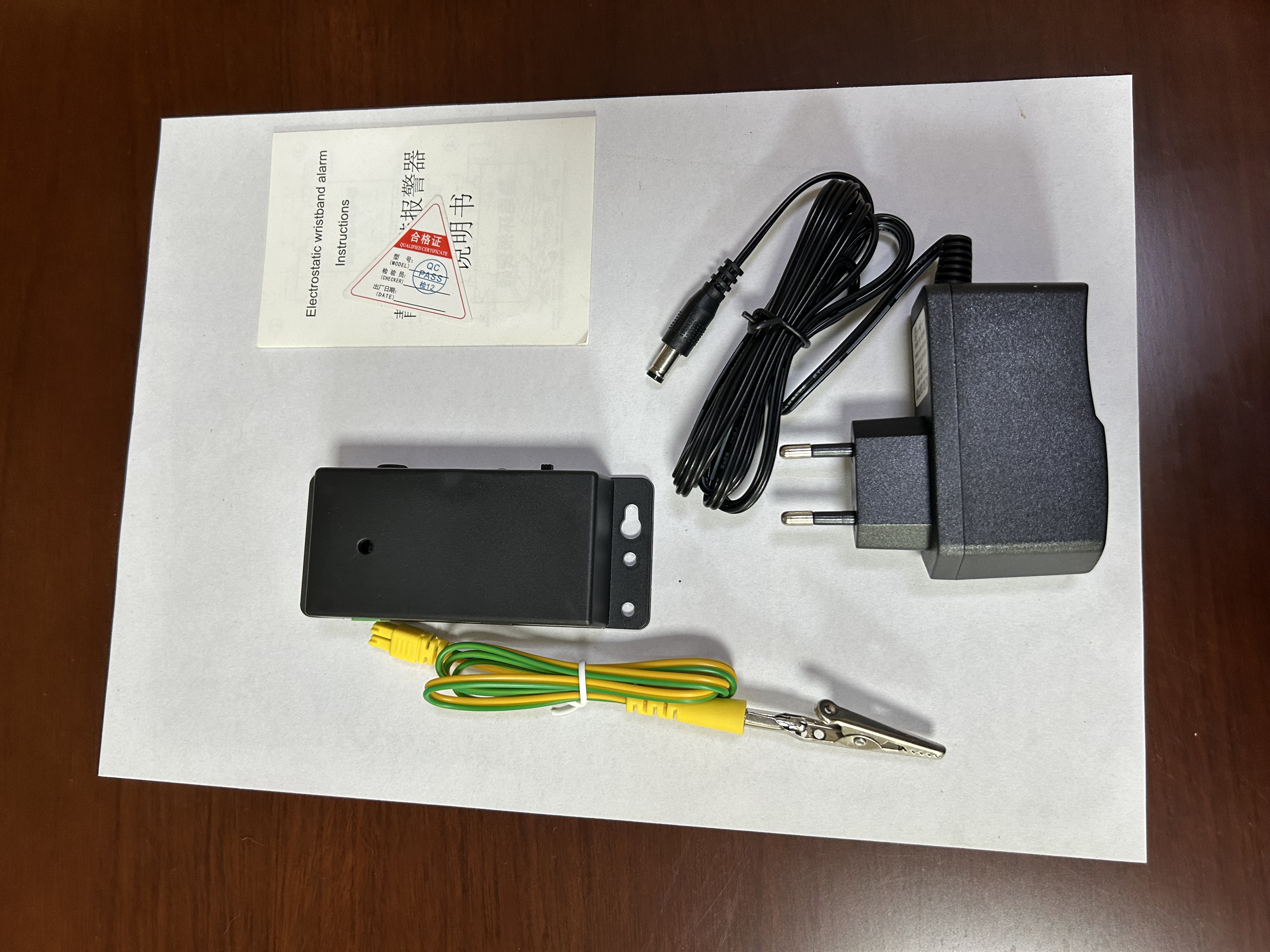

• Metal Mountable Housing Grey metal casing with mounting lugs, can be fixed on workbench or wall. Equipped with DC6V power adapter and ground alligator clip.

• Fast Alarm Response Response time ≤0.1s, quickly alerts operators to abnormal grounding condition.

Usage Instructions

Mount the 209-1 monitor on ESD workbench, connect DC6V power adapter and reliable earth ground via alligator clip.
Plug one ESD wrist strap into the input port of monitor.
Operator must wear wrist strap tightly against skin. Green light stays on when grounding circuit is normal.
Red light and buzzer alarm will activate if wrist strap falls off, wire broken or poor skin contact. Stop work and troubleshoot immediately.
Regular function test: disconnect wrist strap to verify alarm works well for daily ESD audit.
