209-II ESD Wrist Strap Online Monitor

Name: 209-II ESD Wrist Strap Online Monitor
Brand: Suzhou Jujie Electron Co.,Ltd.

Introduction

209-II ESD Wrist Strap Monitor is a dual-channel online real-time monitoring device for ESD wrist straps. It independently monitors the grounding continuity of two operators’ wrist straps simultaneously. When any wrist strap is disconnected, has poor skin contact or ground path failure, the monitor triggers audible and visual alarm instantly. It ensures valid static dissipation at EPA workstations, prevents ESD damage to sensitive electronic components.

PREV：No previous article NEXT：209-I ESD Wrist Strap Online Monitor

01Specification 02Application 03Inquiry

About Us

Suzhou Jujie Electron Co., Ltd was founded in 2005 and is a high-tech enterprise specializing in the research and development, production, sales and service of cleanroom and ESD products. In 2018, suzhou Jujie Electron Co., Ltd fully invested in Jujie Ultra Clean Technology Shuyang Co., Ltd. to expand cleanroom and ESD products production line. The plant area is 33000m², including 8000m² lint free workshop and cleanrooms are built according to ISO Class 5, Class 6 standards and pass the NEBB certification. We increase new 48 automatic weaving, washing, shaping production lines, equipped with laser cutting machine imported from Japan, ultrasonic cutting machine and other automatic production equipment imported from Germany, United States, South Korea infrared spectrometer, liquid particle counter and other high-end detection equipment, production capacity increased by 10 times.

Honor

High tech Enterprise Certificate
NEEB 5
Trademark Certificate
Specialized and Innovative Certificate
Trademark Certificate
ISO 45001
ISO 14001
ISO 9001
3A Certificate
3A Certificate
3A Certificate
3A Certificate

News

Class 10000 Cleanroom: ISO 7 Requirements, Consumables, and ...

Industry news 2026-09-25

If your team is upgrading an SMT line, a medical packaging area, or an optical assembly cell to a Class 10000 cleanroom, the first purchase order often goes to the HVAC contractor. That is understand...
View More
Class 1000 Cleanroom Explained: ISO 6 Standards, Particle Li...

Industry news 2026-09-18

A Class 1000 cleanroom permits no more than 1,000 particles of 0.5 microns or larger per cubic foot of air, which makes it equivalent to an ISO Class 6 cleanroom under ISO 14644-1. It is a widely spe...
View More
Understanding Battery Dry Rooms: Dew Points, Design, and Cle...

Industry news 2026-09-11

A battery dry room is a sealed, positive-pressure enclosure that holds the air at −40°C to −60°C dew point, a moisture content of only a few parts per million. That dryness is not a comfort feature; ...
View More

Industry Knowledge Extension

Application

Widely used in electronics cleanrooms, SMT and PCB workshops, semiconductor factories, optical and display workshops, new energy workshops, electronic assembly and repair workstations and other ESD-controlled areas.

Features

• Two Independent Monitoring Channels Two separate circuits for two operators. Each channel has independent LED indicator, no cross interference.

• Separate Audible & Visual Alarm for Each Channel Green LED for normal condition; red LED plus buzzer alarm activates within 0.1 second when abnormality occurs. Operators can quickly identify which channel is faulty.

• Adjustable Alarm Resistance Threshold Default resistance range: 1.068MΩ ~ 2.0MΩ (±5%). Threshold can be customized according to factory ESD control specification.

• Anti-EMI Interference Circuit Built-in electromagnetic interference suppression circuit, effectively prevents false alarms caused by motors, soldering stations and other workshop equipment.

• Intelligent Microchip Control, Plug & Play No complicated calibration required after installation. Just connect power and ground wire to start working.

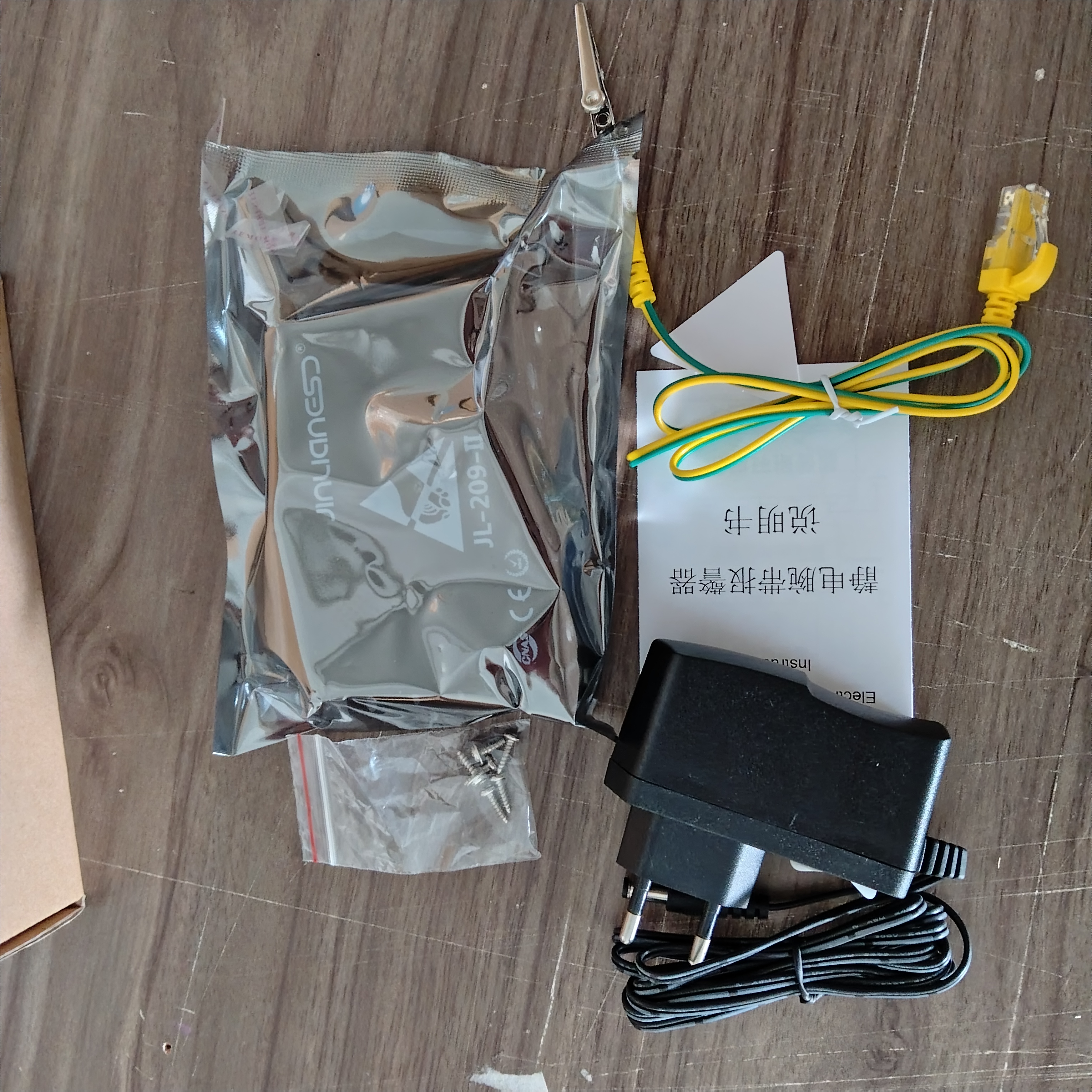

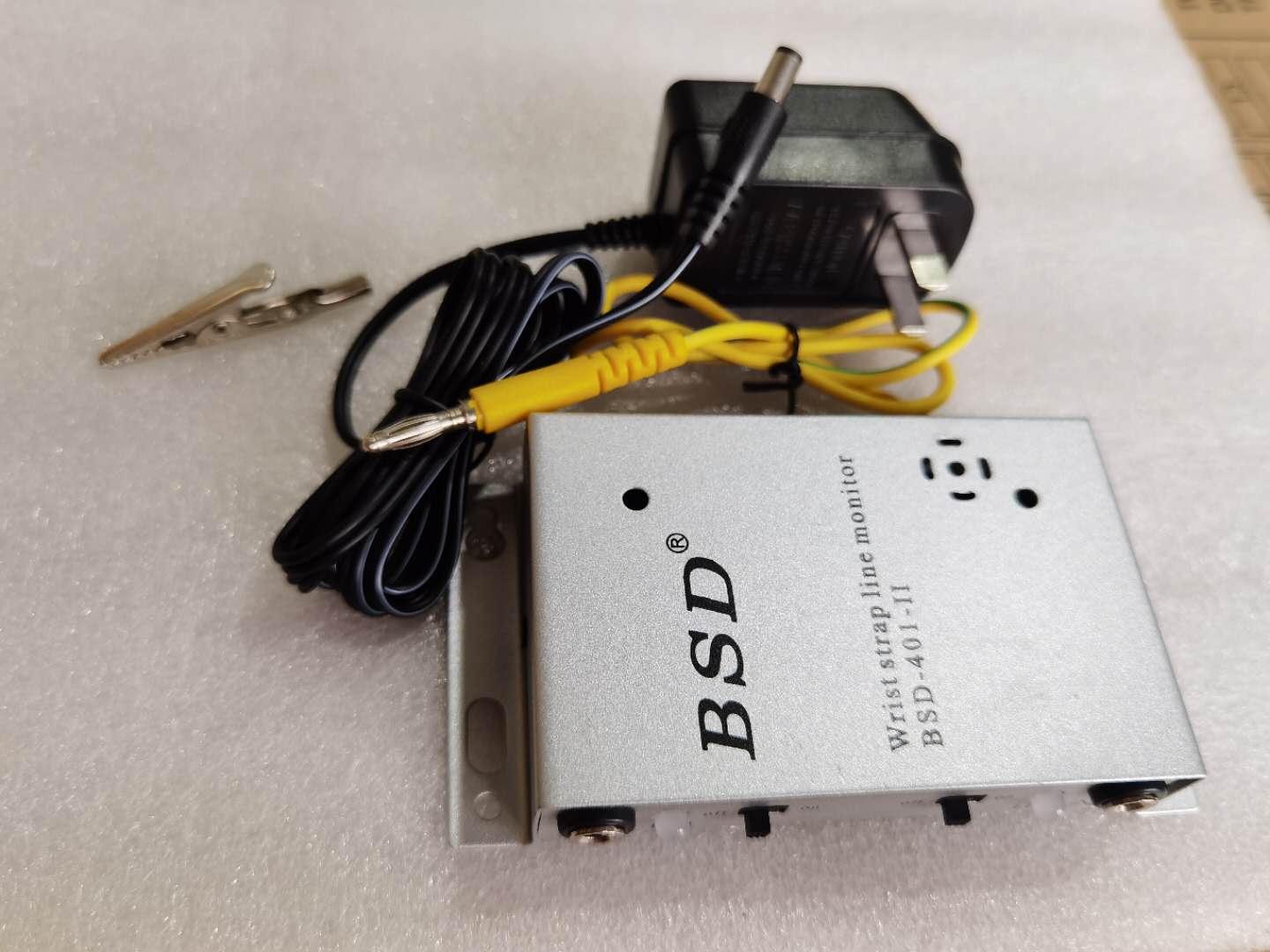

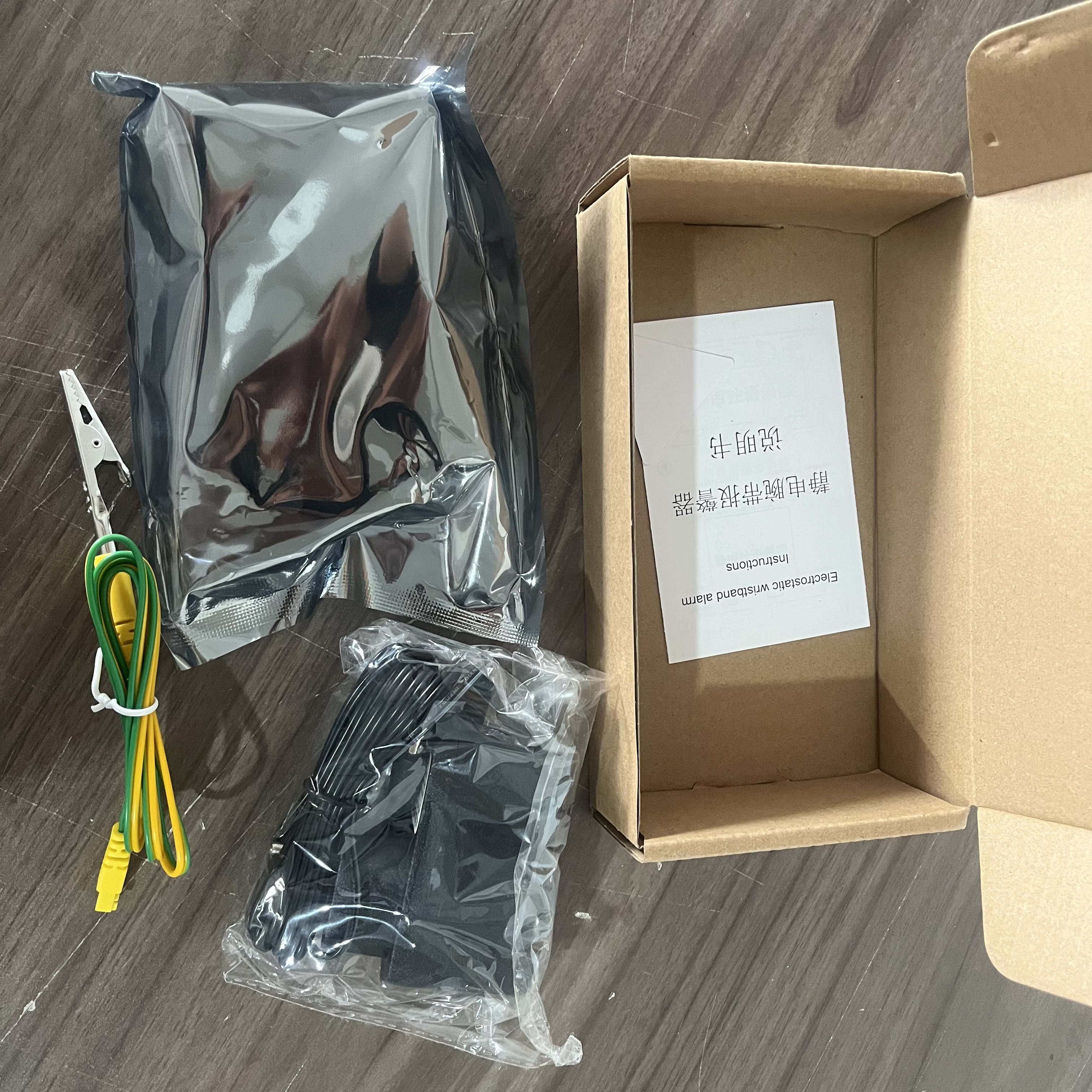

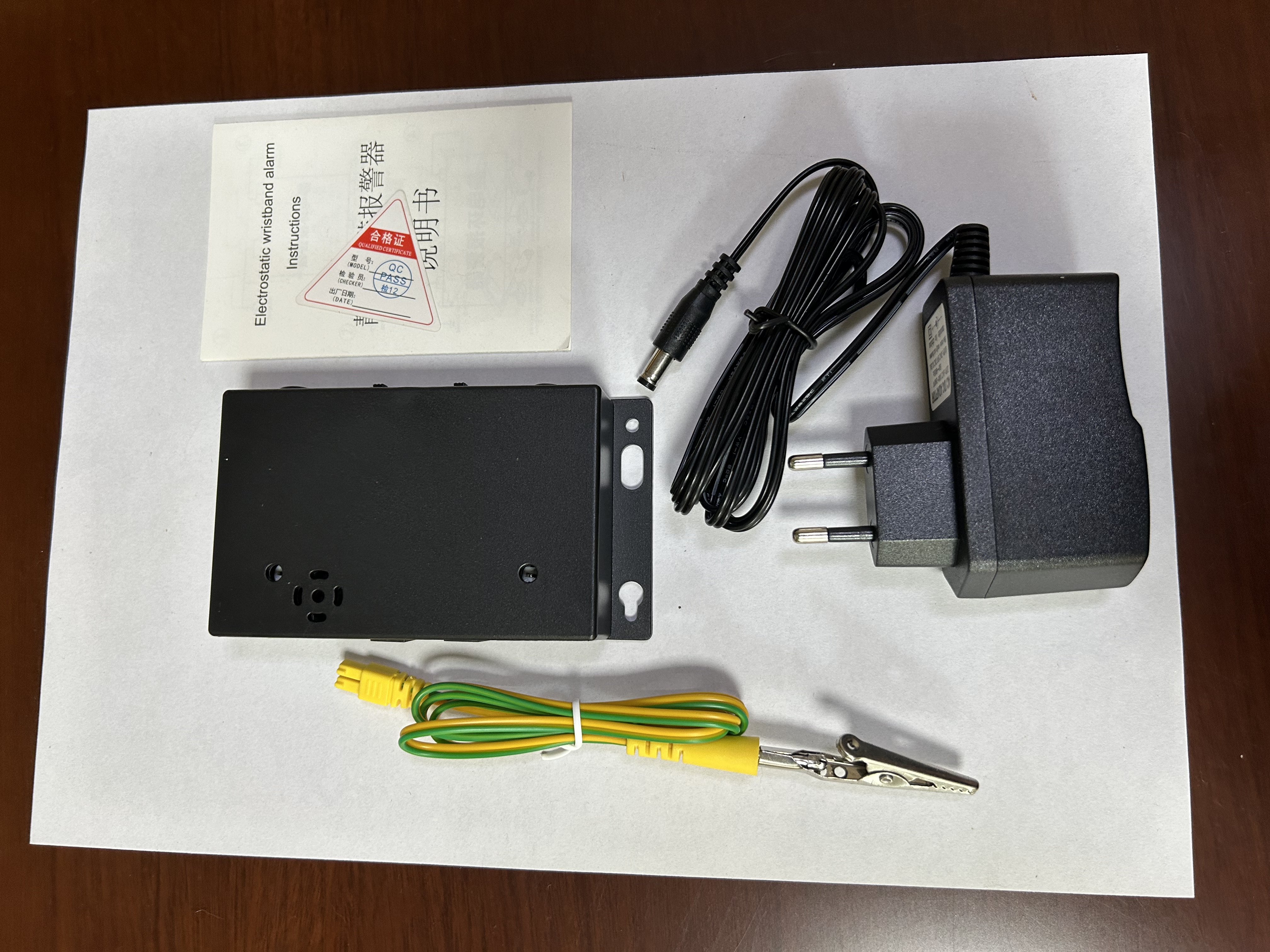

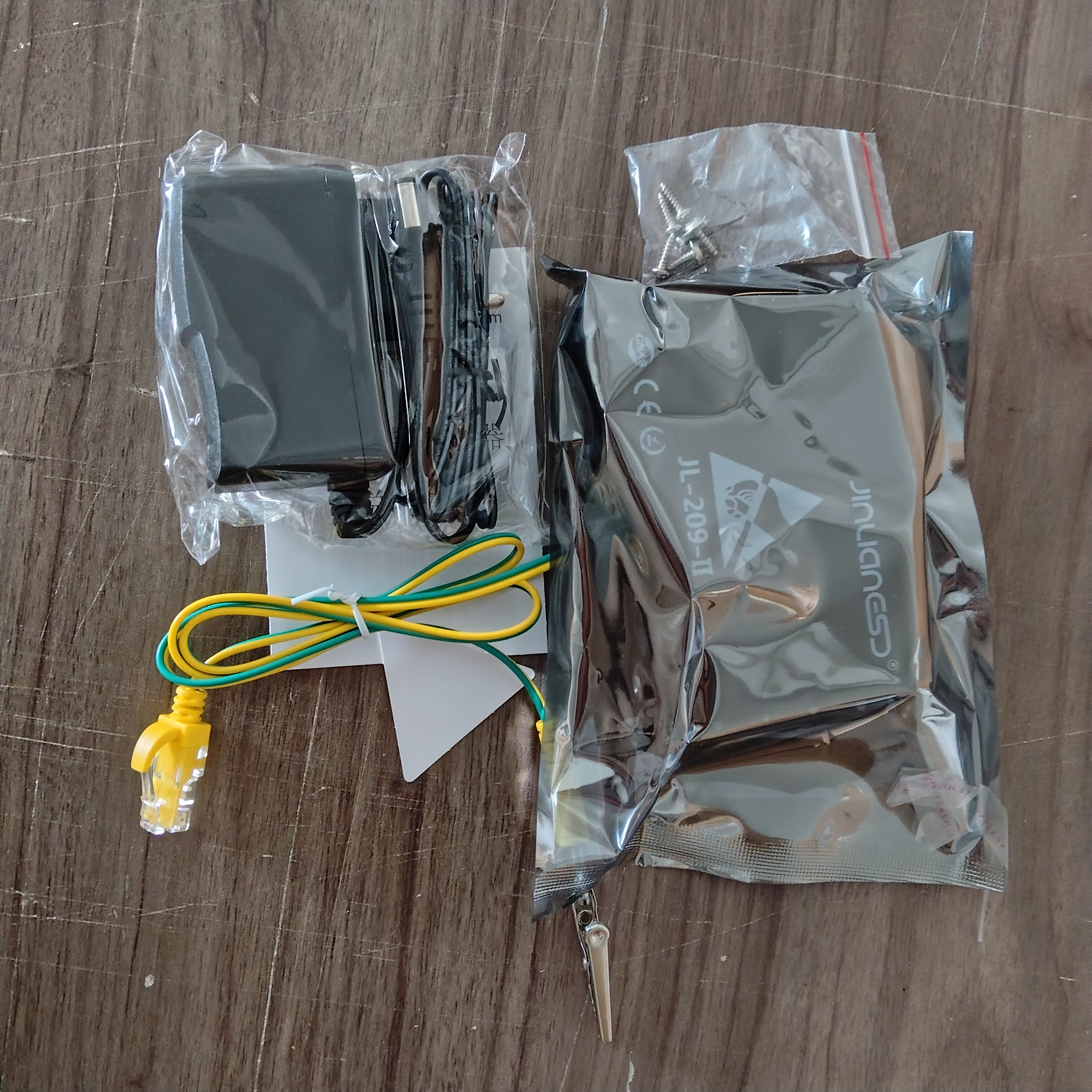

• Sturdy Metal Housing with Mounting Tabs Grey metal casing, durable and easy to mount on workbench or wall. Standard accessories include DC6V power adapter and ground alligator clip.

• Short Alarm Response Time Response time ≤0.1s, fast warning for operators to stop production and troubleshoot grounding issues.

Usage Instructions

Fix the 209-II monitor on ESD workbench. Connect DC6V power adapter and connect ground clip to reliable earth ground.
Insert two ESD wrist straps into Channel 1 and Channel 2 ports respectively.
Two operators wear wrist straps tightly against skin. The corresponding green LED lights up when grounding loop is normal.
If one wrist strap falls off, wire breaks or skin contact is poor, that channel will light red LED and sound buzzer. Stop operation and check immediately.
Perform regular function test: unplug each wrist strap one by one to verify alarm function for daily ESD audit.
