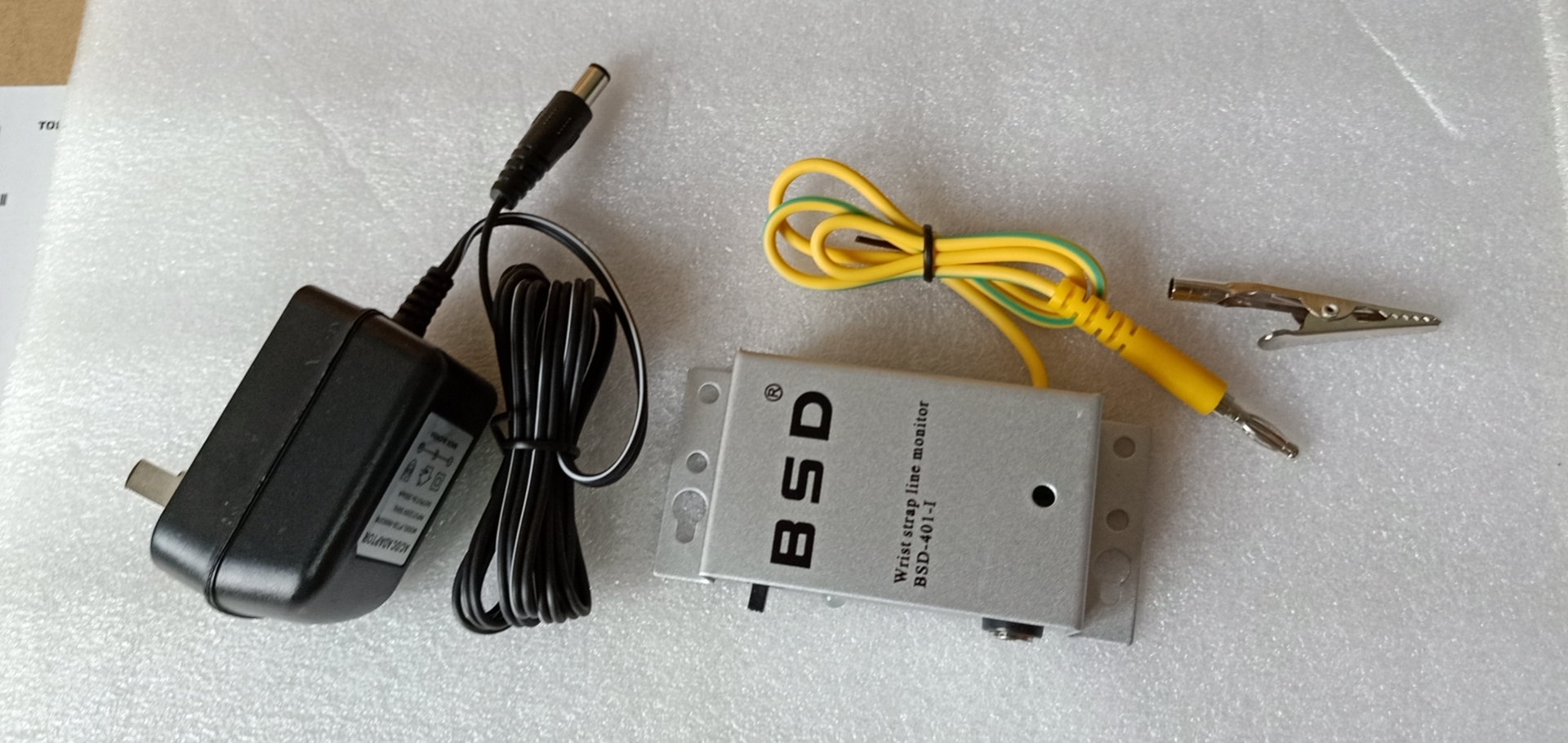

BSD-401-I ESD Wrist Strap Online Monitor

Features

• Dual Real-time Monitoring Single station design, monitors wrist strap continuity and ESD work surface grounding resistance at the same time.

• Audible & Visual Alarm Indication Green LED for normal status; red LED plus buzzer alarm once wrist strap or work surface grounding fails. Quick response for onsite warning.

• Adjustable Alarm Threshold Configurable resistance limits for work surface and wrist strap to match different factory ESD control specifications.

• Anti-interference Circuit Design Built-in EMI suppression circuit, effectively reduces false alarms caused by surrounding production equipment interference.

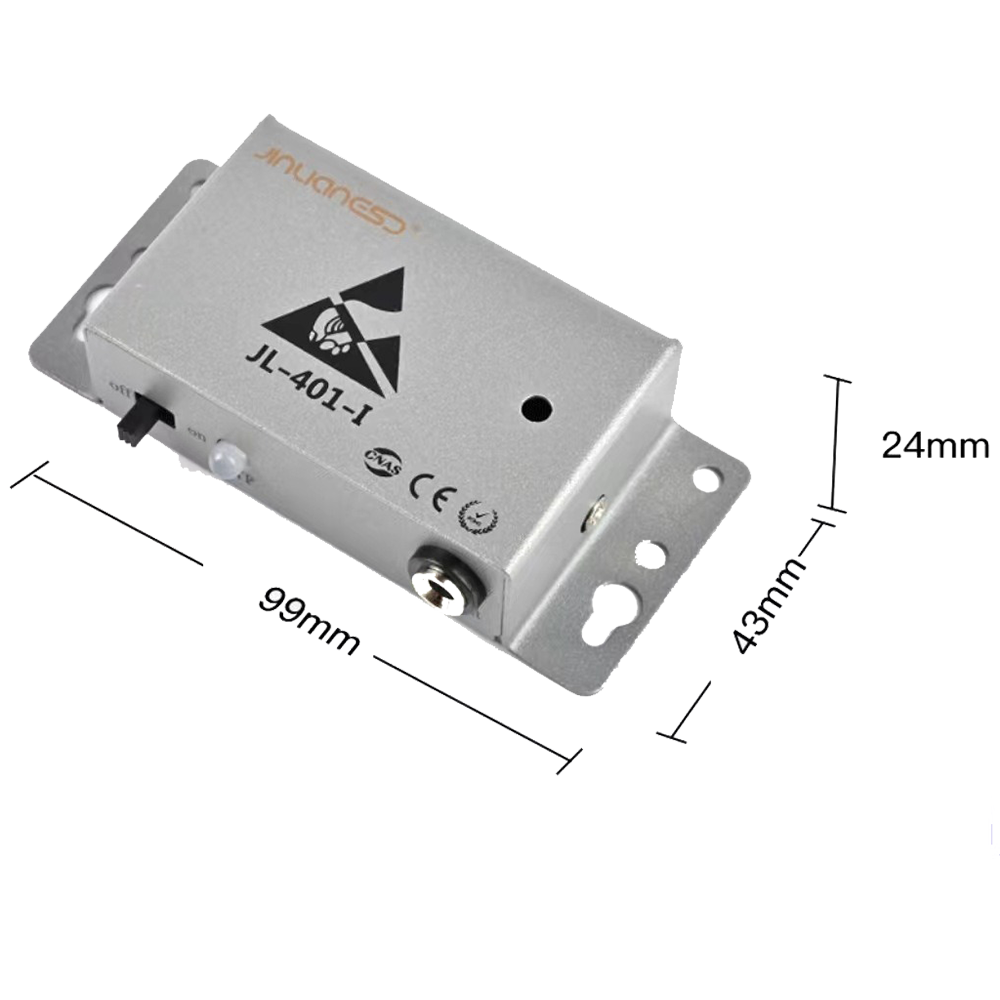

• Compact ABS Housing & Easy Installation Small size enclosure, easy to mount on workbench. Simple wiring for power, ground, wrist strap and work surface connection.

• Continuous Online Detection 24-hour real-time monitoring during production, no manual periodic testing required. Records abnormal events for ESD audit.

• Stable & Reliable Performance Low power consumption, long service life, suitable for continuous workshop operation.

Usage Instructions

1. Mount the 401-1 monitor on the ESD workbench, complete power connection and reliable earth ground wiring.
2. Connect the wrist strap port to operator’s ESD wrist strap; connect the work surface terminal to ESD table mat.
3. Wear the wrist strap tightly against skin. When both wrist strap and table grounding are normal, green light stays on.
4. Red light and buzzer activate if wrist strap disconnects, table mat grounding fails or resistance out of set range. Stop operation and troubleshoot.
5. Perform regular function verification by simulating disconnection to confirm alarm function works properly.

401-1 ESD Monitor, Single Station Online ESD Wrist Strap & Work Surface Ground Resistance Tester with Audible Visual Alarm
