518-2 ESD Wrist Strap Online Monitor

518-2 ESD Wrist Strap Monitor, Dual Channel Online Anti-static Wristband Ground Continuity Tester with Audible Visual Alarm

Company Background
Suzhou Jujie Electron Co., Ltd. occupies a leading position in the global anti-static product market. With a professional foreign trade sales team and independent import and export rights, it has established cooperative relations with more than 30 Fortune 500 companies. Our products are sold well in 83 countries and regions around the world, including the United States, Germany, Japan, India, etc. As an approved supplier of well-known companies such as Apple, Huawei, Samsung, and Intel, we are committed to providing customers with the highest quality products and services, adhering to the concept of "people-oriented, quality-leading, customer-first, and pursuit of excellence".

Application

Widely used in electronics cleanrooms, SMT and PCB workshops, semiconductor factories, optical and display workshops, new energy workshops, electronic assembly and repair workstations and other ESD-controlled areas.

Features

• Dual Independent Monitoring Channels Two separate monitoring circuits support two operators working simultaneously. Each channel works independently without mutual interference.

• Audible & Visual Alarm Indication Green LED light for normal status; red LED plus buzzer alarm activates within 0.1s when wrist strap circuit is abnormal. Fast alarm response for immediate on-site troubleshooting.

• Fixed Alarm Threshold Standard detection resistance 1.4MΩ ±5%. Accurate judgment of wrist strap wearing status and human body grounding continuity.

• Strong Anti-interference Performance Built-in anti-EMI circuit design, effectively reduces false alarms caused by surrounding production equipment electromagnetic noise.

• Chip Control & Plug-and-Play Microchip control system, simple wiring, no complex calibration required after installation. Ready to work after connecting power and ground wire.

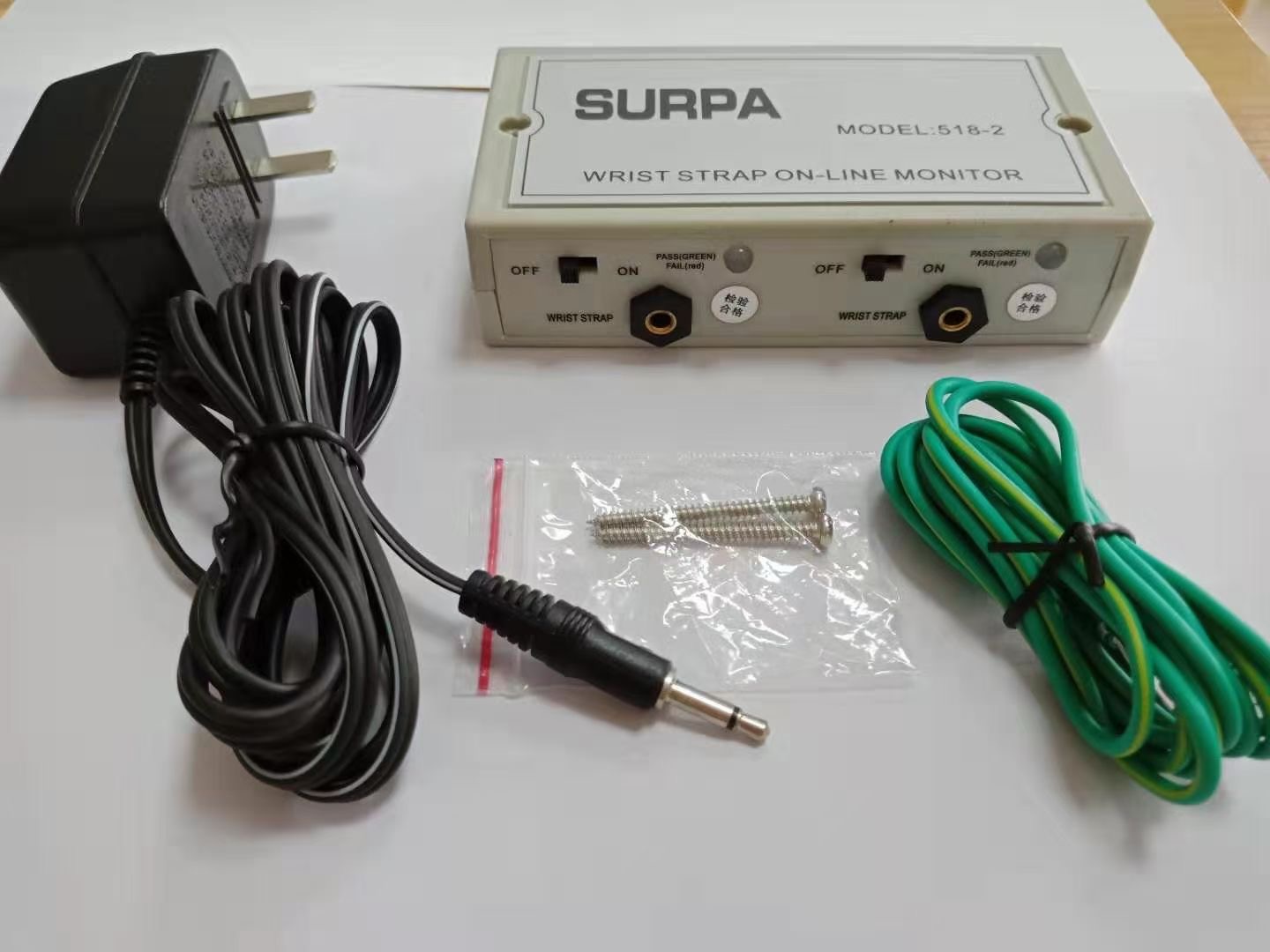

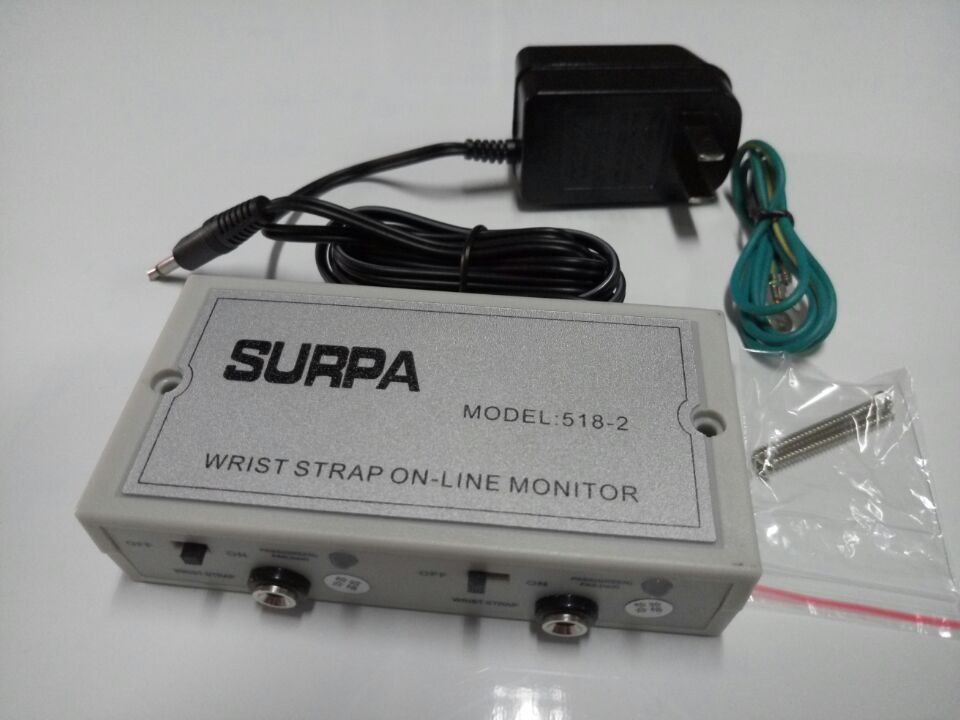

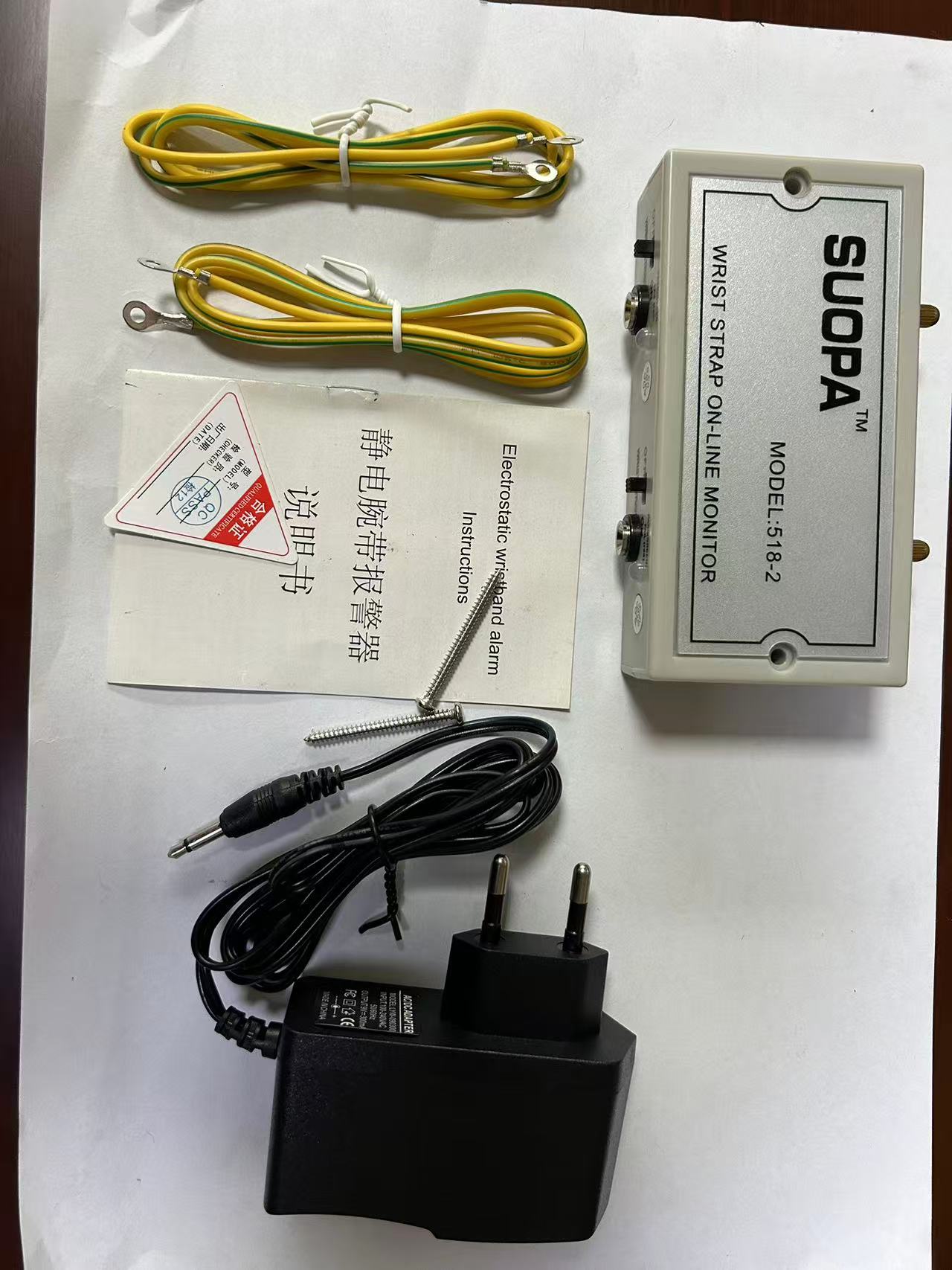

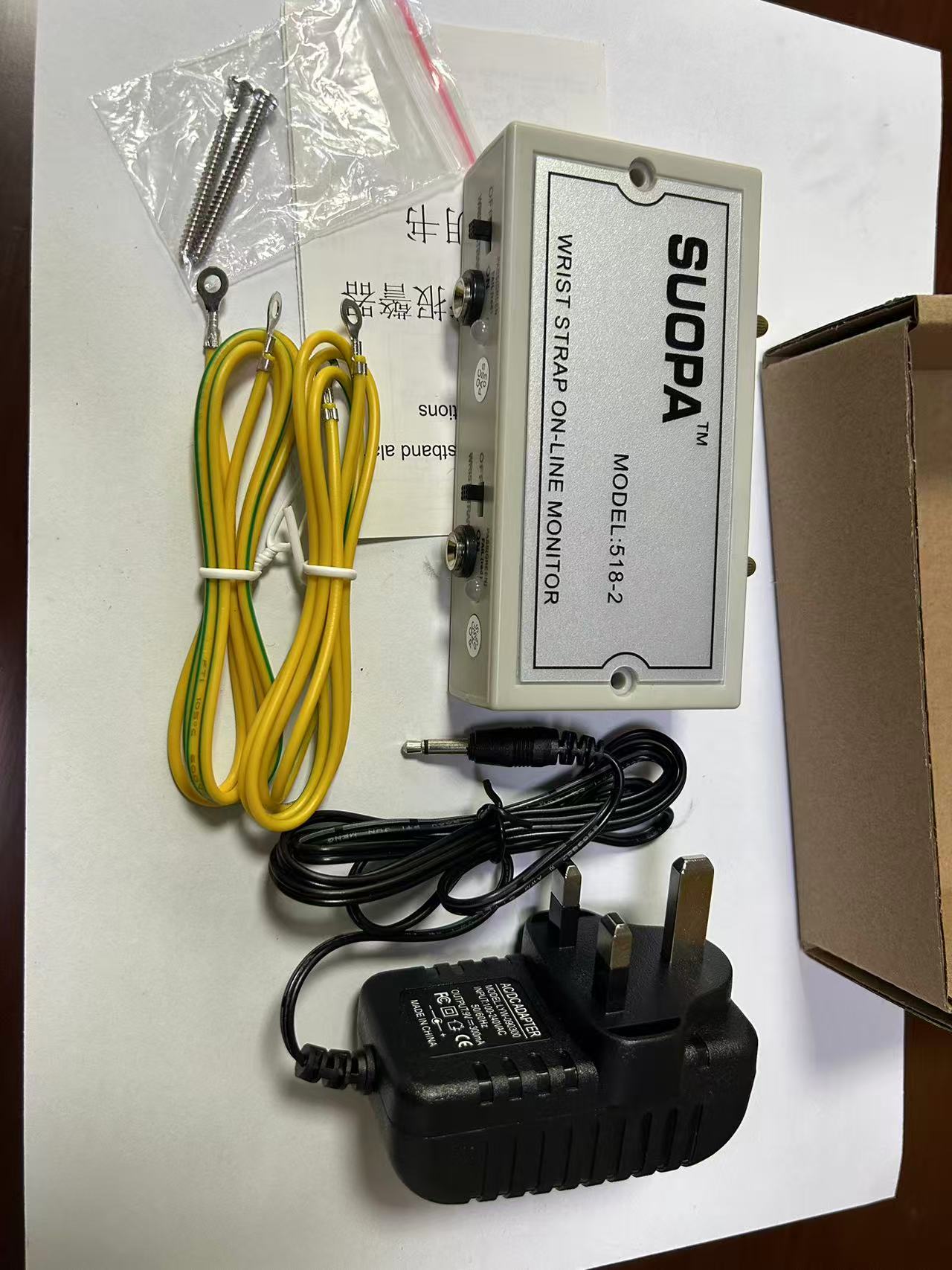

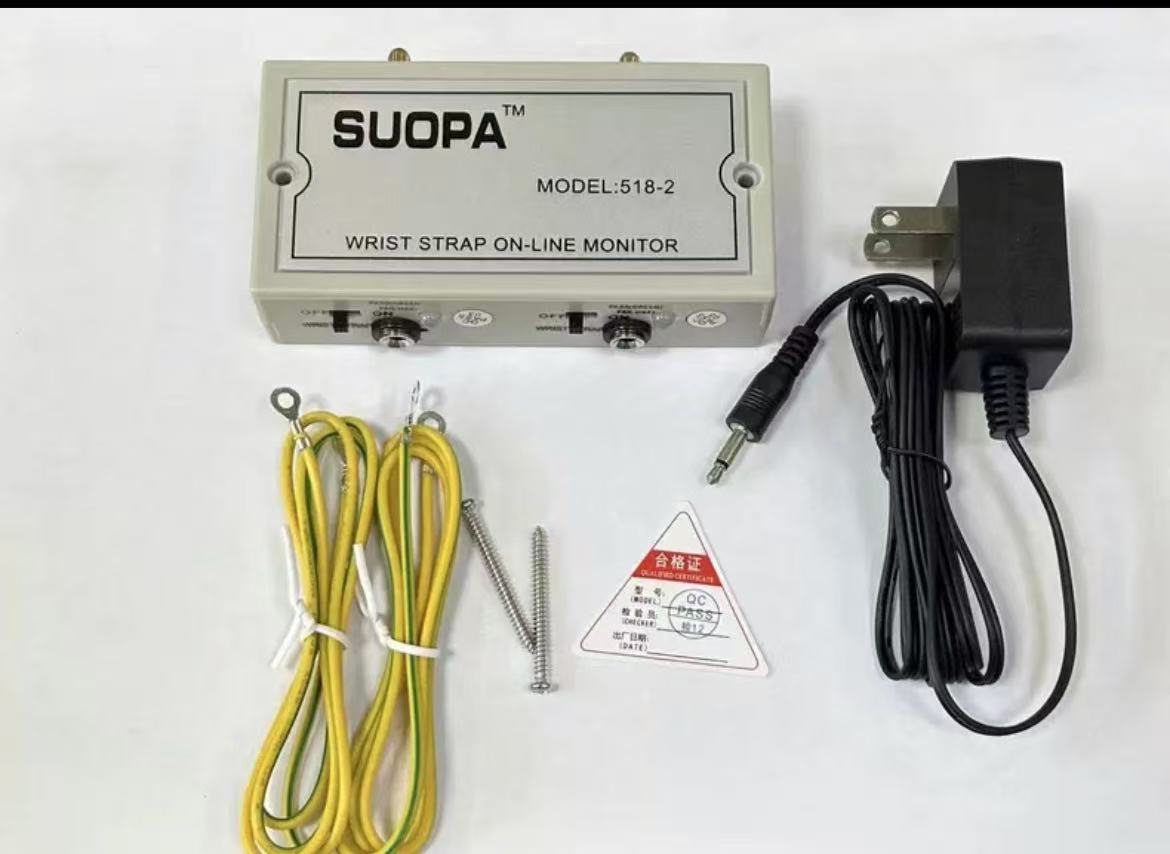

• Compact Metal/ABS Housing Small footprint desktop enclosure, easy to mount on workbench. Comes with DC6V power adapter and two grounding wires as standard accessories.

• Low Power Consumption Power consumption only 1.8W, stable for long-time continuous operation on production lines.

Usage Instructions

1. Place the 518-2 monitor on ESD workbench, connect the DC6V power adapter and reliable earth ground wire.
2. Plug two ESD wrist straps into the two respective ports on the monitor.
3. Operators wear wrist straps tightly against skin. Green LED lights up when the grounding loop is normal.
4. Red LED and buzzer alarm will activate if wrist strap falls off, wire breaks or poor skin contact. Stop operation and inspect immediately.
5. Perform regular function test: disconnect wrist strap to verify alarm function works properly for daily ESD audit.
