ESD Gel Stick with Silicone Head
  • ESD Gel Stick with Silicone Head
  • ESD Gel Stick with Silicone Head
  • ESD Gel Stick with Silicone Head
  • ESD Gel Stick with Silicone Head
  • ESD Gel Stick with Silicone Head
  • ESD Gel Stick with Silicone Head Suzhou Jujie Electron Co.,Ltd.
  • ESD Gel Stick with Silicone Head Suzhou Jujie Electron Co.,Ltd.
  • ESD Gel Stick with Silicone Head Suzhou Jujie Electron Co.,Ltd.
  • ESD Gel Stick with Silicone Head Suzhou Jujie Electron Co.,Ltd.
  • ESD Gel Stick with Silicone Head Suzhou Jujie Electron Co.,Ltd.

ESD Gel Stick with Silicone Head

Introduction

ESD Gel Stick, also known as sticky gel swab, is a precision micro dust removal tool specially developed for high-grade cleanrooms and ESD controlled workshops. It consists of a soft adhesive silicone gel tip and static dissipative rod (paper / conductive plastic). The soft sticky gel head can pick up micro dust, particles and tiny contaminants on delicate surfaces without scratching substrates or leaving residue. With stable static dissipative property, it safely protects electrostatic sensitive components during precision cleaning operations.

CONTACT US
PREV：Acrylic Handle ESD Gel StickNEXT：Non-Woven Face Mask
01Specification 02Application 03Inquiry

Specification/Parameter

Item

ESD Gel Stick

Head Material

Silicone

Handle Mateial

Paper/ plastic

Head Length

1.5mm, 2.5mm

Total Length

75mm

Tackiness

High

Packing

100 Pieces / Box

Sample

Available

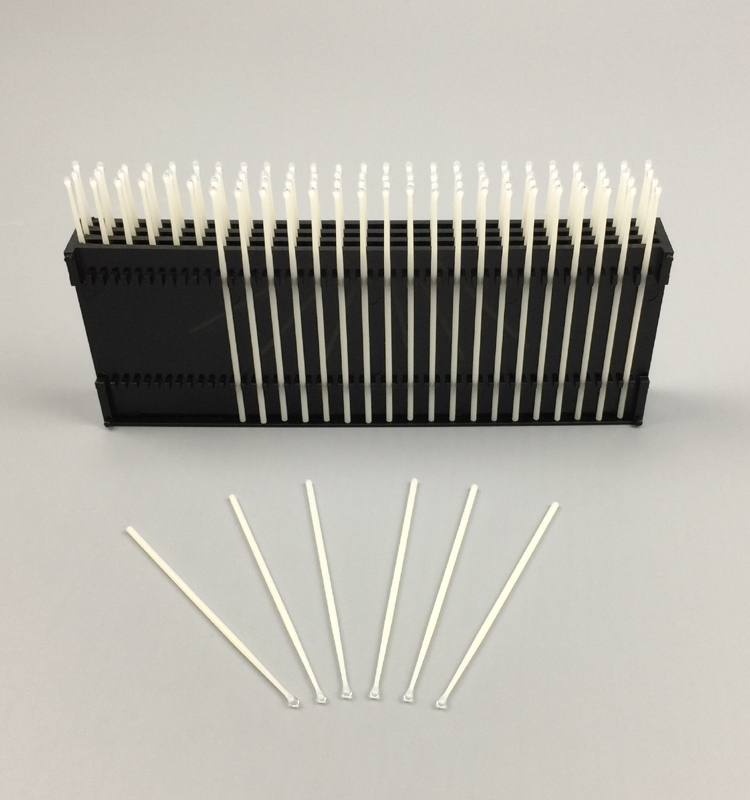

Picture show

photobank6

Related Products

About Us

Suzhou Jujie Electron Co., Ltd was founded in 2005 and is a high-tech enterprise specializing in the research and development, production, sales and service of cleanroom and ESD products. In 2018, suzhou Jujie Electron Co., Ltd fully invested in Jujie Ultra Clean Technology Shuyang Co., Ltd. to expand cleanroom and ESD products production line. The plant area is 33000m², including 8000m² lint free workshop and cleanrooms are built according to ISO Class 5, Class 6 standards and pass the NEBB certification. We increase new 48 automatic weaving, washing, shaping production lines, equipped with laser cutting machine imported from Japan, ultrasonic cutting machine and other automatic production equipment imported from Germany, United States, South Korea infrared spectrometer, liquid particle counter and other high-end detection equipment, production capacity increased by 10 times.

Honor

  • High tech Enterprise Certificate
  • NEEB 5
  • Trademark Certificate
  • Specialized and Innovative Certificate
  • Trademark Certificate
  • ISO 45001
  • ISO 14001
  • ISO 9001
  • 3A Certificate
  • 3A Certificate
  • 3A Certificate
  • 3A Certificate

News

Industry Knowledge Extension

The outstanding advantages of ESD Gel Stick: efficient, convenient and environmentally friendly cleaning solutions

Company background

Suzhou Jujie Electron Co., Ltd., established in 2005, is a high-tech enterprise focusing on the research and development, production, sales and service of clean room and anti-static products. In 2018, the company fully invested in Jujie Ultraclean Technology Shuyang Co., Ltd. and expanded its production lines for clean rooms and anti-static products. We have a 33,000 square meter factory building, of which 8,000 square meters is a lint-free workshop. The clean room is built in accordance with ISO Class 5 and Class 6 standards and has passed NEBB certification. By introducing advanced automated production equipment and testing equipment, the company's production capacity has been significantly improved. We cooperate with more than 30 Fortune 500 companies, and our products are exported to 83 countries and regions around the world. Adhering to the concept of "people-oriented, quality leadership, customer first, pursuit of excellence", we provide customers with high-quality products and services and support OEM and ODM orders.

Features

• ESD Static Dissipative Performance: Stable anti-static property, safely release static charge, prevent ESD damage to chips, sensors and sensitive electronic components.

• Soft Sticky Gel Tip, Zero Residue & Non-scratch: Special non-volatile silicone gel formulation. Lifts fine particles, dust and fingerprints without scratching lenses, sensors or wafers. No glue transfer or residual marks on workpieces.

• Lint-Free & Low Particle: Clean raw material, no fiber shedding, low ion content, no secondary contamination, compliant with high-level cleanroom requirements.

• Multiple Tip Sizes & Viscosity Options: Round gel head available; various head diameters (0.8mm,1.3mm,1.7mm,2.5mm). Low / medium / high tack optional to match different cleaning demands.

• Optional Rod Material: Paper rod or conductive plastic rod for selection. Firm bonding between gel tip and rod, no tip falling off during operation.

• Reusable within Service Life: Can be reused multiple times. When contaminated, press the gel tip on clean sticky pad to refresh surface. Stop using once gel surface is heavily polluted.

• Odorless & Environmentally Friendly: Non-toxic, odorless, no chemical volatiles, safe for long-time cleanroom operation.

Summarize

ESD Gel Stick, Anti-Static Sticky Gel Swab, Lint-Free Precision Dust Removal Pen for Semiconductor Camera Sensor Cleanroom
