518-1 ESD Wrist Strap Online Monitor

518-1 ESD Wrist Strap Monitor, Single Channel Online Anti-static Wristband Ground Continuity Tester with Audible Visual Alarm

Company Background
Suzhou Jujie Electron Co., Ltd. occupies a leading position in the global anti-static product market. With a professional foreign trade sales team and independent import and export rights, it has established cooperative relations with more than 30 Fortune 500 companies. Our products are sold well in 83 countries and regions around the world, including the United States, Germany, Japan, India, etc. As an approved supplier of well-known companies such as Apple, Huawei, Samsung, and Intel, we are committed to providing customers with the highest quality products and services, adhering to the concept of "people-oriented, quality-leading, customer-first, and pursuit of excellence".

Application

Widely used in electronics cleanrooms, SMT and PCB workshops, semiconductor factories, optical and display workshops, new energy workshops, electronic assembly and repair workstations and other ESD-controlled areas.

3. Product Features

• Single Independent Monitoring Channel Designed for one operator. Real-time continuous detection of wrist strap circuit continuity.

• Audible & Visual Alarm Indication Green LED for normal working condition; red LED plus buzzer alarm will trigger quickly when abnormal circuit is detected.

• Fixed Alarm Threshold Standard detection resistance 1.4MΩ ±5%. Accurate judgment of wrist strap wearing status and human body grounding loop.

• Strong Anti-interference Performance Built-in EMI suppression circuit to reduce false alarms caused by electromagnetic interference from surrounding production equipment.

• Chip Control & Plug-and-Play Microprocessor control system, simple wiring. No complicated calibration after installation. Ready to run after connecting power and ground.

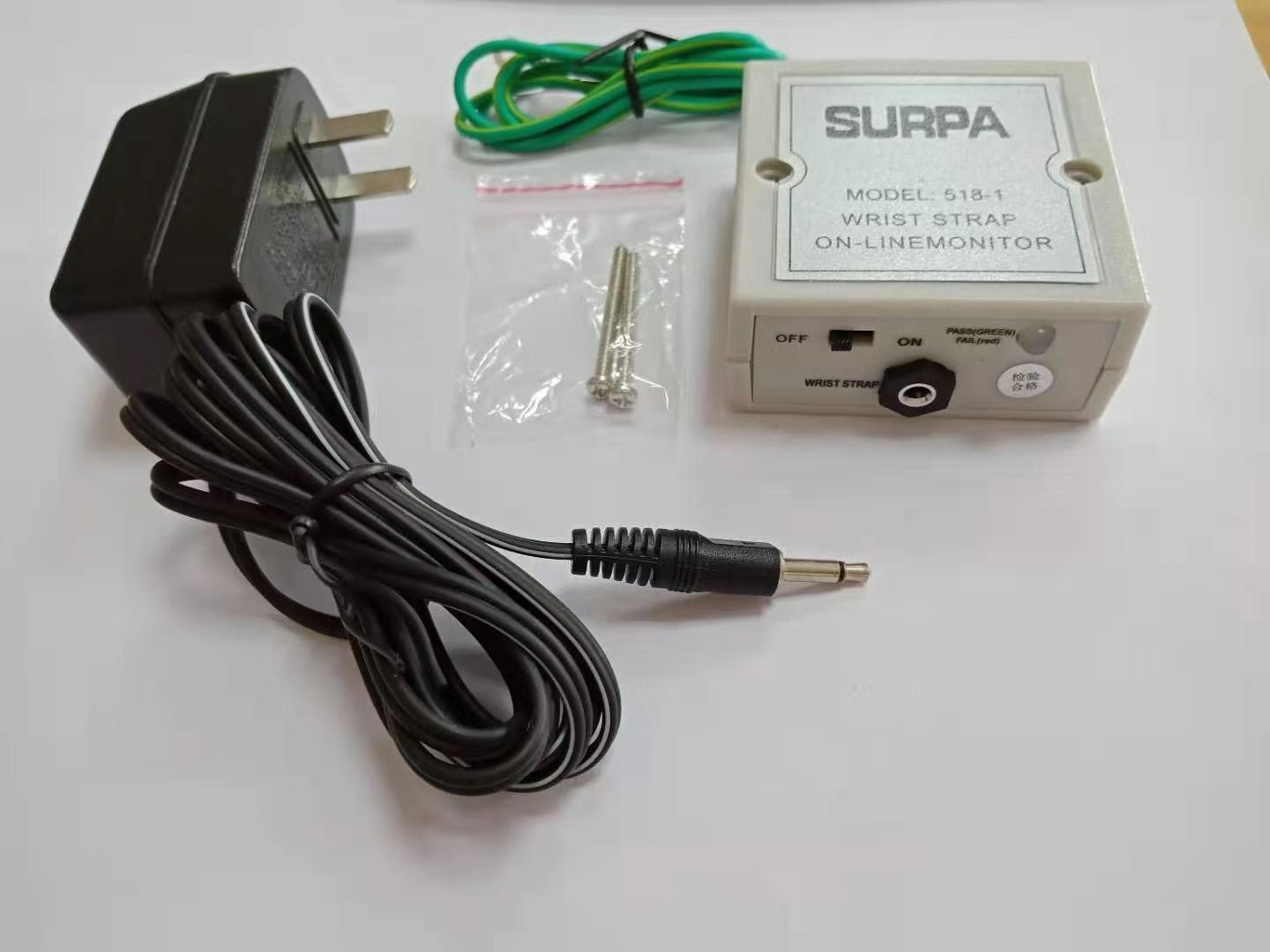

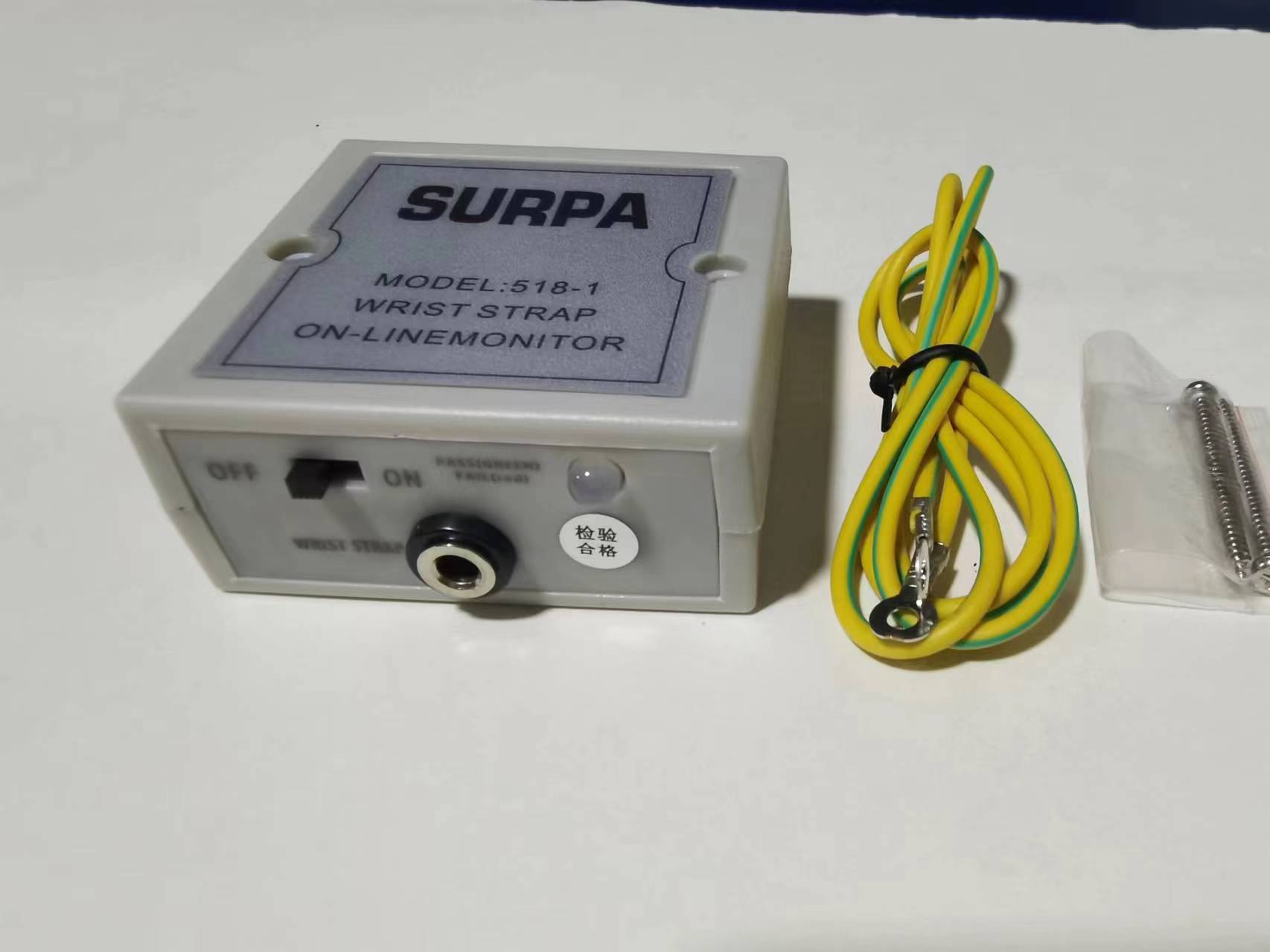

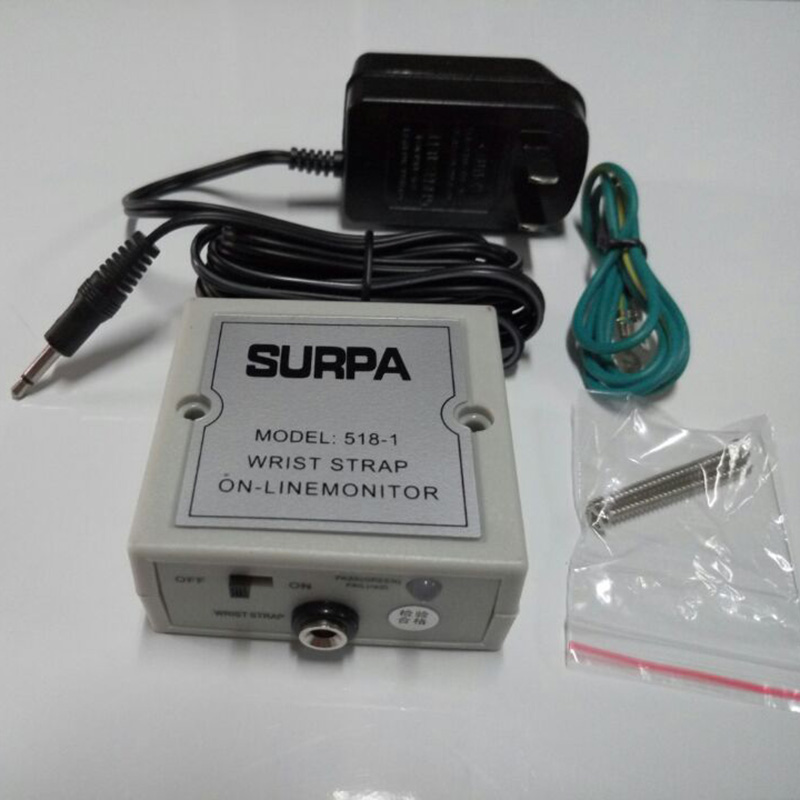

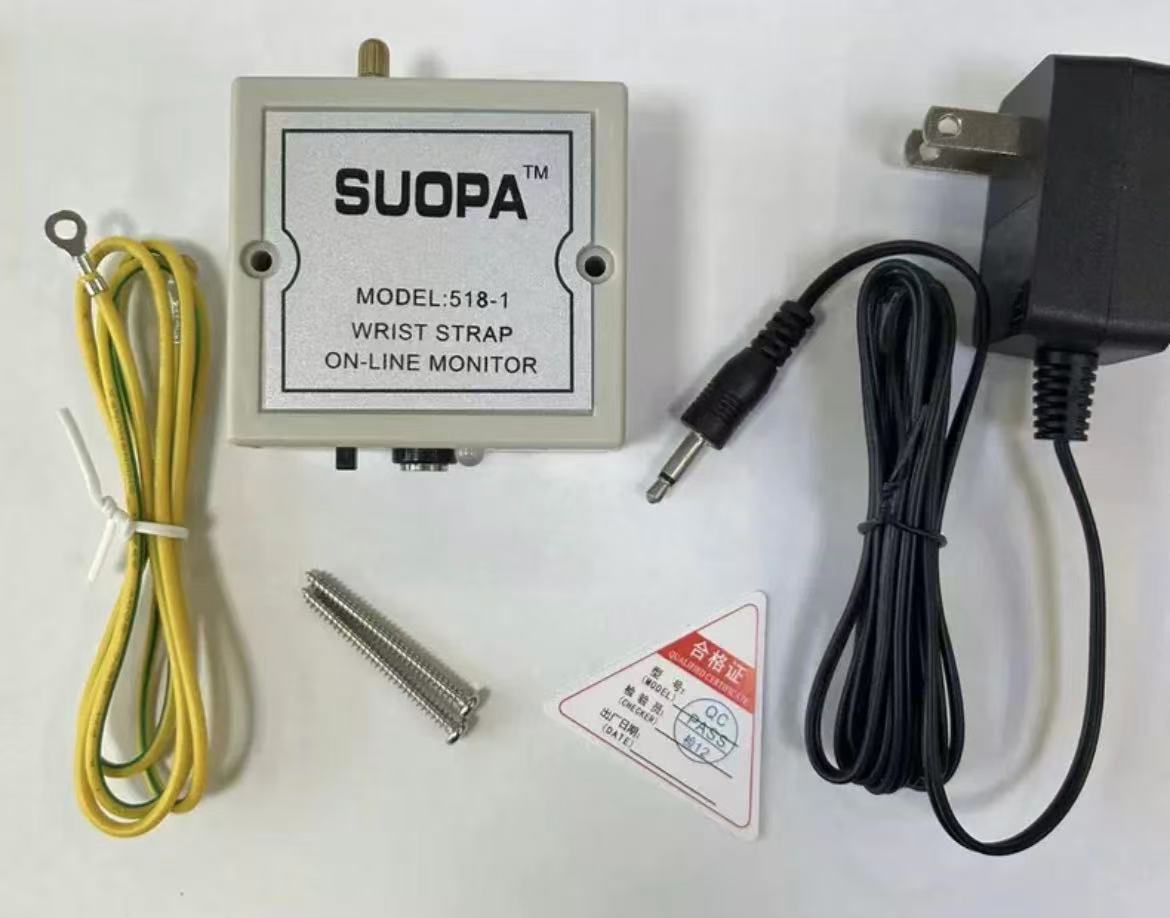

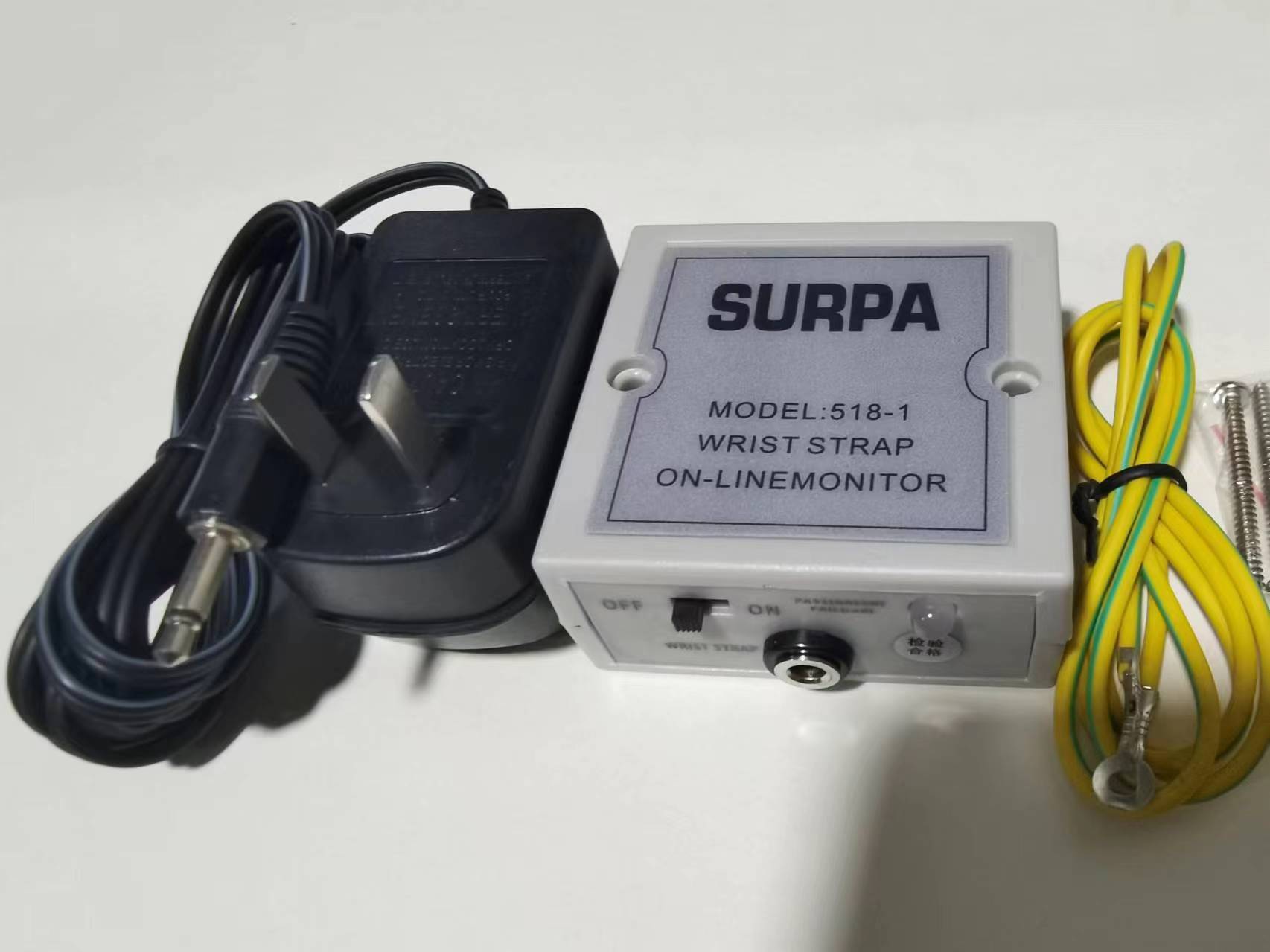

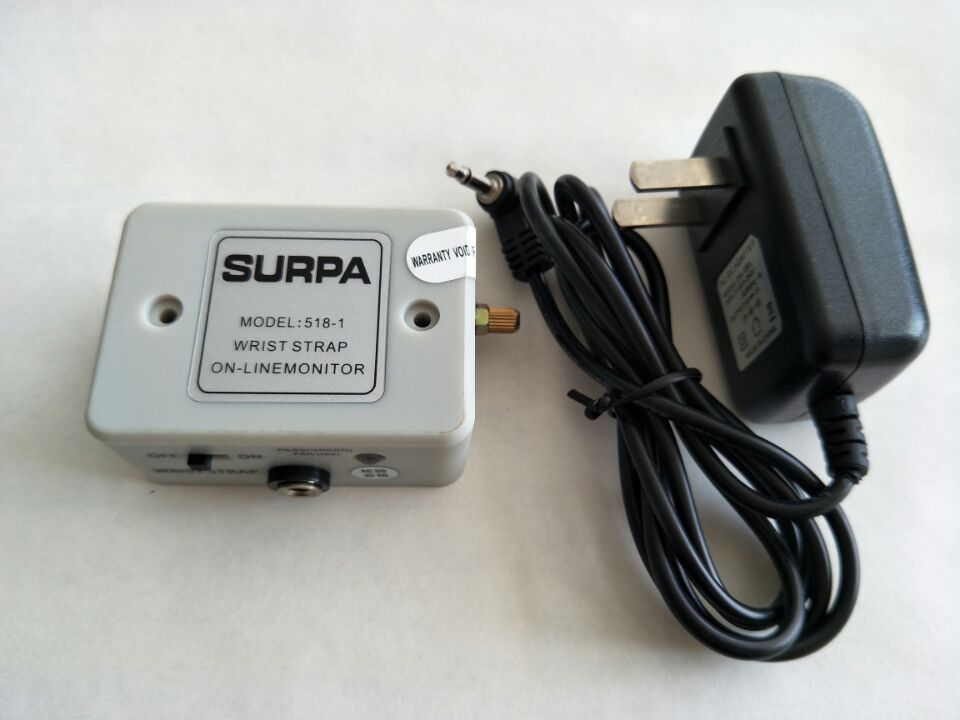

• Compact ABS Housing Small desktop enclosure, easy to place or mount on ESD workbench. Equipped with DC6V power adapter and ground wire.

• Low Power Consumption Low power design, stable for long-time non-stop operation on production lines.

Usage Instructions

1. Place the 518-1 monitor on the ESD workbench. Connect the DC6V power adapter and reliable earth ground wire.
2. Plug one ESD wrist strap into the monitor port.
3. Operator must wear the wrist strap firmly against skin. Green LED lights up when grounding circuit is normal.
4. Red LED and buzzer alarm will activate if wrist strap falls off, wire breaks or skin contact is poor. Stop operation and troubleshoot immediately.
5. Perform regular function verification by disconnecting the wrist strap to confirm alarm works well for daily ESD audit.
